N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft

Shenzhen Jinshunlaite Motor Co., Ltd.
Contact Now

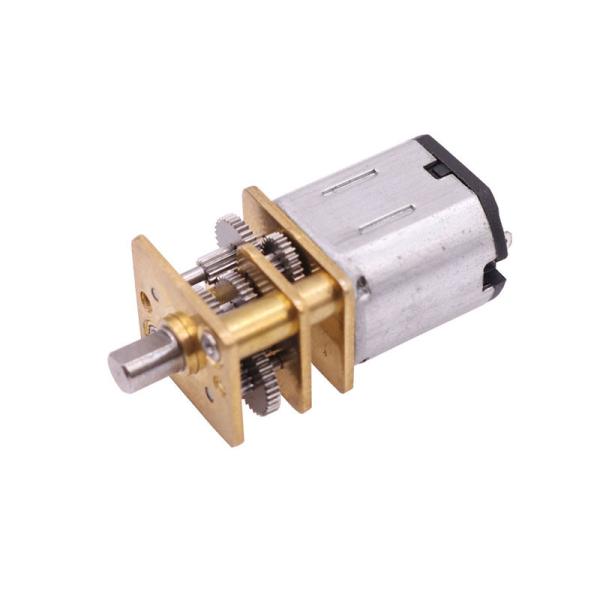

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft

Brand Name : ASLONG

Model Number : JGA12-N10

Certification : CE,CC

Place of Origin : CHINA

MOQ : 2 Pieces

Price : Negotiation

Payment Terms : D/P, T/T, Western Union, MoneyGram, L/C

Supply Ability : 5000 Pieces Per Day

Delivery Time : 2-5 work days

Packaging Details : on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32

Type : Micro Motor,Gear Motor

Commutation : Brush

Speed(rpm) : 55-2100rpm

Weight : 12g

Product name : N10 6v micro dc gear motor

Size : 12mm

Contact Now

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft



N10 High Rpm High Torque Dc Gear Motor 55 Rpm-2100 Rpm 3V 6V 12mm Diameter Mini Gearbox



N20 Small DC Gear Motors

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type ShaftN10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft







Description:



The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a lightweight, high torque, and low RPM motor. This motor is equipped with a gearbox assembly to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is customization long and 3 mm in diameter.



This motor has low energy consumption and low noise. Replacement of spare parts will make your electrical and testing equipment look new. The bearing quality and the service life of the geared motor are improved, and it is extremely durable.



Because of its small size, the motor fits in complex spaces of small-scale applications. One can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying high loads.



The motor is used in DIY RC Hobby, vehicles, drones, airplanes, etc., the miniature gearbox motor, it is an excellent substitute for the rusty or damaged DC geared motor on the machine.



Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm gearbox motors as following:



N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft
JGA12-N20B JGA12-N10 JGA12-N30 JGA1024-N20
N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft



High Torque Dc Motor Specification:

1. Rated voltage: DC 5V
2. No-load current: 60mA
3. No-load speed: 80RPM
4. Suitable voltage: DC 3V-5V
5. Speed: 90RPM-150RPM
6. Weight: 12g
7. Output shaft length: 8mm(D type shaft)

Voltage/rpm/shaft can be customized , welcome to consult.







Drawing:

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type ShaftN10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft



Datasheet:



Model No load On Load Stall Ratio
Workable Voltage Speed Current Speed Current Torque Torque Current
V rpm A rpm ma Kg.cm Kg.cm ma 1:00
  6 2100 40 1680 130 0.02 0.1 0.5 10
6 700 40 560 130 0.04 0.2 0.5 20
6 420 40 336 130 0.06 0.3 0.5 50
6 210 40 168 130 0.1 0.5 0.5 100
6 140 40 112 130 0.16 0.8 0.5 150
6 100 40 80 130 0.22 1.1 0.5 210
6 70 40 56 130 0.3 1.5 0.5 298
6 55 40 44 130 0.4 2 0.5 380



FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
